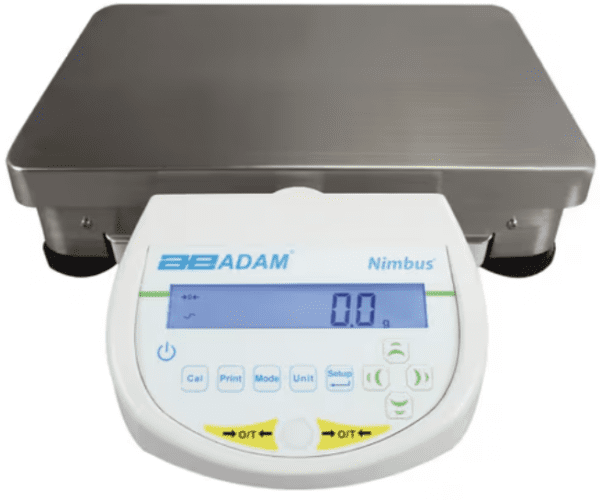

Adam Equipment Nimbus® Heavy Duty Precision Balances
Designed to be durable, Nimbus® heavy duty precision balances feature solid metal construction throughout the balance to withstand chemicals and rigorous daily use. Navigation buttons are large and color-coded, helping users operate the balance with minimal training.
Models: NBL 12001e, NBL 16001e, NBL 22001e, NBL 12001P, NBL 16001P, NBL 22001P
Key specifications:
- Capacity: 12000g to 22000g
- Readability: 0.1g
Please call or contact support for equipment price, lead time, and to order equipment.
Please call or contact support for Calibration Certificate Quote. We will meet or beat any manufacturer’s calibration price.
Details
Durable and reliable, Nimbus® precision balances deliver a full breadth of readabilities ranging from 1mg to 0.1g. Innovative design enables a compact footprint, so it occupies minimal space while retaining a high level of performance. Single-piece construction offers greater stability, producing highly repeatable results. The weighing sensor in the Nimbus is crafted from a single block and contains fewer parts than a traditional force motor balance. This optimized internal mechanism is fabricated using hardened materials, helping the Nimbus tolerate rigorous laboratory use. Efficiency in the mechanics, plus improved processing power of the electronics, leads to excellent performance.
Features
- Vivid, backlit LCD easily visible in any lighting conditions
- Color-coded keys facilitate quick recognition of the most frequently used buttons
- Level indicator and adjustable feet ensure proper balance setup for optimum weighing results
- Robust metal housing protects internal components in harsh environments
- Sealed keypad protects against dirt and spills
- USB and RS-232 interfaces provide speedy communication with computers and printers
- Large, grade 304 stainless steel pan allows swift cleaning
- AC adapter included
- External calibration allows for verification and adjustment with weights
- Printouts include date and time for data tracking within Good Laboratory Practices (GLP) guidelines
- Selectable digital filtering helps minimize effects of vibration and disturbances
- Zero-tracking feature ensures display returns to zero reading
- Adam Connect compatible for Bluetooth® data transfer to printers and PCs
- Multilingual display permits use in various regions
- A 5-year warranty means quality assured for years of use.
Specifications
Please scroll to the sides to see the full table on small screens.
NBL 12001e |
NBL 16001e |
NBL 22001e |
NBL 12001P |
NBL 16001P |
NBL 22001P |
|
|---|---|---|---|---|---|---|
| Capacity | 12000 g | 16000 g | 22000 g | 12000 g | 16000 g | 22000 g |
| Readability | 0.1 g | 0.1 g | 0.1 g | 0.1 g | 0.1 g | 0.1 g |
| Repeatability (S.D.) | 0.2 g | 0.2 g | 0.2 g | 0.2 g | 0.2 g | 0.2 g |
| Linearity (+/-) | 0.4 g | 0.4 g | 0.4 g | 0.4 g | 0.4 g | 0.4 g |
| Pillar | N/A | N/A | N/A | Yes | Yes | Yes |
| Overall dimensions (W x D x H) |
15.7” x 18.9” x 3.9”
400 x 480 x 100 mm |
15.7” x 18.9” x 3.9”
400 x 480 x 100 mm |
15.7” x 18.9” x 3.9”
400 x 480 x 100 mm |
15.7” x 18.9” x 23.2”
400 x 480 x 590 mm |
15.7” x 18.9” x 23.2”
400 x 480 x 590 mm |
15.7” x 18.9” x 23.2”
400 x 480 x 590 mm |
Specifications for All Models |
|
|---|---|
| Pan size | 15.7″ x 11.8″ / 400 x 300 mm |
| Weighing units | g, mg, ct, GN, N, oz, ozt, dwt, T, custom unit |
| Stabilization Time (sec) | 3 |
| Interface | RS-232, USB |
| Calibration | External calibration |
| Display | Backlit LCD with 0.8″ / 20 mm-high digits |
| Power Supply |
18 VDC 830 mA adapter |
| Operating Temperature | 15° to 35°C / 59° to 95°F |
| Housing |
Extruded aluminum base with a die-cast aluminum case |
| Net weight |
16.8 lb / 7.6 kg |
